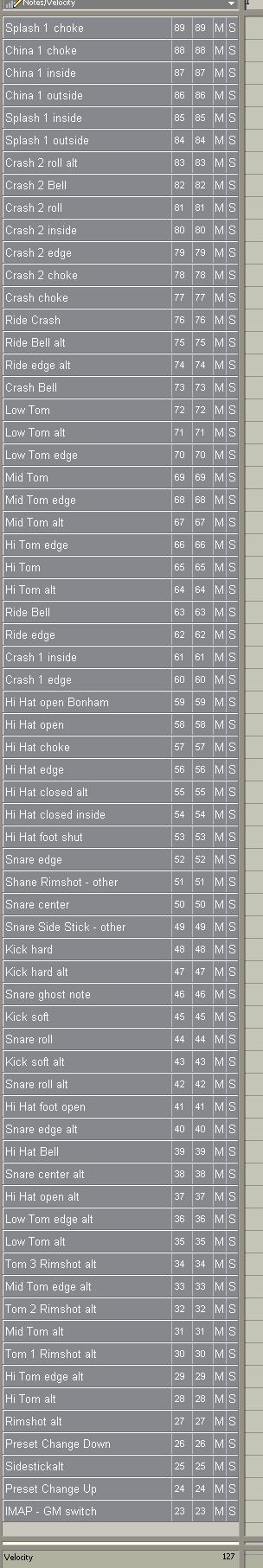

Ocean Way Drum mapping for Cakewalk SONAR and the Alesis Trigger I/O

	MIDI Note Name	MIDI note number
	Instrument	Sonic Reality IMAP	Cakewalk SONAR	Alesis Trigger I/O
			90
	Splash 1 Choke		89
	China 1 Choke		88
	China 1 Inside		87
	China 1 Outside		86
	Splash 1 Inside		85
	Splash 1 Outside	C 5	84 C7
	Crash 2 Roll Alt		83
	Crash 2 Bell		82
	Crash 2 Roll		81
	Crash 2 Inside		80
	Crash 2 Edge		79
	Crash 2 Choke		78
	Crash Choke		77
	Ride Crash		76
	Ride Bell Alt		75
	Ride Edgel Alt		74
	Crash Bell		73
	Low Tom	C 4	72 C 6	72 C 6
	Low Tom Alt		71
	Low Tom Edge		70	70
	Mid Tom		69	69
	Mid Tom Edge		68	68
	Mid Tom Alt		67
	Hi Tom Edge		66	66
	Hi Tom		65	65
	Hi Tom Alt		64
	Ride Bell		63	63
	Ride Edge		62	62
	Crash 1 Inside		61
	Crash 1 Edge	C 3	60 C5	60 C5
	Hi Hat Open Bonham		59
	Hi Hat Open		58	58
	Hi Hat Choke		57
	Hi Hat Edge		56	56
	Hi Hat Closed Alt		55
	Hi Hat Closed Inside		54
	Hi Hat Foot Shut		53	53
	Snare Edge		52
	Snare Rimshot/Other		51	51
	Snare Center		50	50
	Snare Side Stick/Other		49
	Kick Hard	C 2	48 C 4	48 C 4
	Kick Hard Alt		47
	Snare Ghost Note		46
	Kick Soft		45
	Snare Roll		44
	Kick Soft Alt		43
	Snare Roll Alt		42
	Hi Hat Foot Open		41
	Snare Edge Alt		40
	Hi Hat Bell		39
	Snare Center Alt		38
	Hi Hat Open Alt		37
	Low Tom Edge Alt	C 1	36 C 3
	Low Tom Alt		35
	Tom 3 Riomshot Alt		34
	Mid Tom Edge Alt		33
	Tom 2 Riomshot Alt		32
	Mid Tom Alt		31
	Tom 1 Riomshot Alt		30
	Hi Tom Edge Alt		29
	Hi Tom Alt		28
	Rimshot Alt		27
	Preset Change Down		26
	Sidestick Alt		25
	Preset Change UP	C 0	24 C 2
	IMAP - GM switch		23
